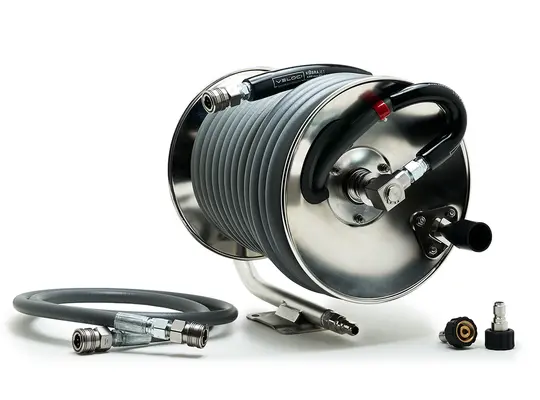

This all-inclusive hose reel bundle has everything you need including fittings, simply requires assembly! The Prima 100' Hose Reel Kit includes a 100' stainless hose reel, a 100' KobraJet smooth grey non-marking hose with a thick inner wall to prevent gashes and ruptures, a 5' whip line to connect to your pressure washer, Prima stainless steel quick connects, and a high-grade stainless swivel. **Specifications**

• Supports 100' of 3/8" (ID) pressure washing hose
• 4,000 PSI Max
• 215° Max Temp

**Included**

• 100’ Stainless Hose Reel
• 100’ KobraJet Smooth Grey 3/8” 4,000 PSI Non-Marking Hose
• 5’ KobraJet Whip Line
• 3/8” Prima (56.0081) Stainless Steel plug
• 3 3/8” Prima (56.0063) Stainless Steel couplers
• Stainless steel M22 plug (14mm and 15mm included) to install on pressure washer pump
• Teflon Tape
• Installation and mounting instructions

Reel Dimensions

Measurement	50'	100'	150'	200'
Height	16.5"	16.5"	16.5"	16.5"
Total Width	15"	16.14"	15"	20.5"
Depth	13.5"	13.5	13.5"	13.5"
Wall Width	7.5"	8.66"	10"	16"
Core Width	4."	5.12"	6.375"	12.5"
Core Diameter	5.5"	5.5"	5.5"	5.5"
Inlet	3/8" Male NPT	3/8" Male NPT	3/8" Male NPT- 9" Pigtail	3/8" Male NPT- 9" Pigtail
Base to Center of Core	10"	10"	10"	10"
Mounting Bracket	Yes	Yes	4 slots-4.25" W x 3.375" D	4 slots-4.25" W x 3.375" D
Hole Diameter	0.41"	0.41”	0.375" x 2.2" Slot	0.375" x 2.2" Slot
Pin Lock	Yes	Yes	Yes	Yes
Mounting Hardware	None	None	None	None
