100' Professional Hose Reel Kit - Assembled

Part Number:
43.5035
OEM Number:
43.5035
154 In Stock 154 In Stock Sign in to Buy

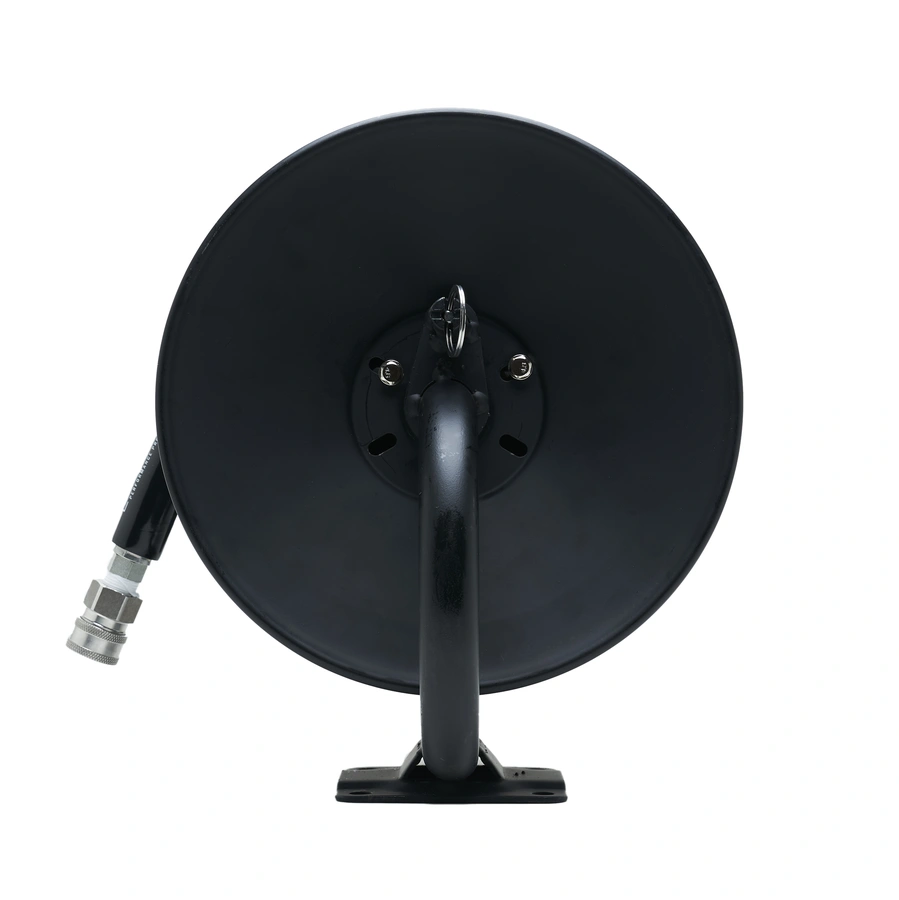

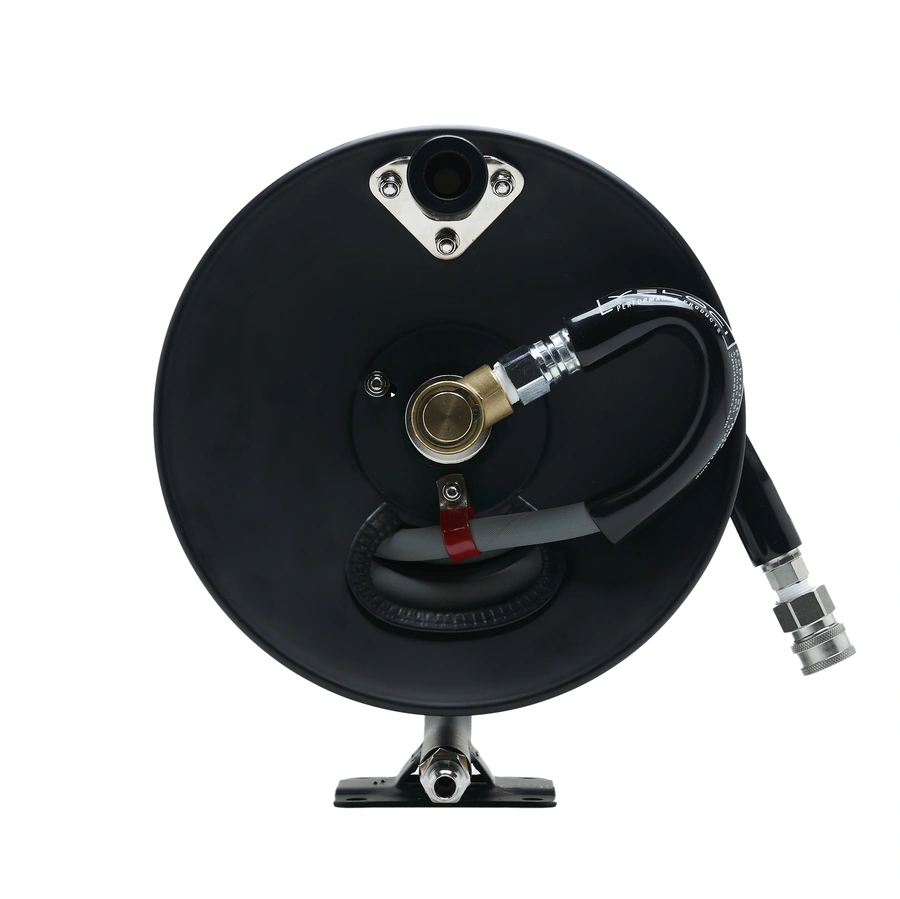

This all-inclusive hose reel kit has everything you need including installed fittings and assembly! The Professional 100' Hose Reel Kit includes a 100' hose reel, a 100' black KobraJet hose with a thick inner wall to prevent gashes and ruptures, a 5' whip line to connect to your pressure washer, pre-installed stainless steel quick connects, and a high-grade brass swivel that is recognized to outperform other competing models. **Specifications**

  • 100' Hose Reel
  • Supports 100' of 3/8" (ID) pressure washing hose
  • Mounted Weight of 32lbs.
  • 4,000 PSI Max
  • 140° Max Temp


**Included**

  • 100’ Hose Reel
  • 100’ KobraJet Black 3/8” 4,000 PSI
  • 5’ Whip Line 3/8" stainless steel couplers installed
  • 3/8” stainless steel plug installed on inlet of hose reel
  • 3/8” stainless steel coupler installed on outlet of hose
  • Stainless steel M22 plug (14mm and 15mm included) to install on pressure washer pump
  • Teflon Tape
  • Installation and mounting instructions


Reel Dimensions

Measurement

50'

100'

150'

200'

Height

16.5"

16.5"

16.5"

16.5"

Total Width

15"

16.14"

15"

20.5"

Depth

13.5"

13.5

13.5"

13.5"

Wall Width

7.5"

8.66"

10"

16"

Core Width

4."

5.12"

6.375"

12.5"

Core Diameter

5.5"

5.5"

5.5"

5.5"

Inlet

3/8" Male NPT - 9" Pigtail

3/8" Male NPT - 9" Pigtail

3/8" Male NPT - 9" Pigtail

3/8" Male NPT - 9" Pigtail

Base to Center of Core

10"

10"

10"

10"

Mounting Bracket

4 slots-4.25" W x 3.375" D

4 slots-4.25" W x 3.375" D

4 slots-4.25" W x 3.375" D

4 slots-4.25" W x 3.375" D

Hole Diameter

0.375" x 2.2" Slot

0.375" x 2.2" Slot

0.375" x 2.2" Slot

0.375" x 2.2" Slot

Pin Lock

Yes

Yes

Yes

Yes

Mounting Hardware

None

None

None

None
