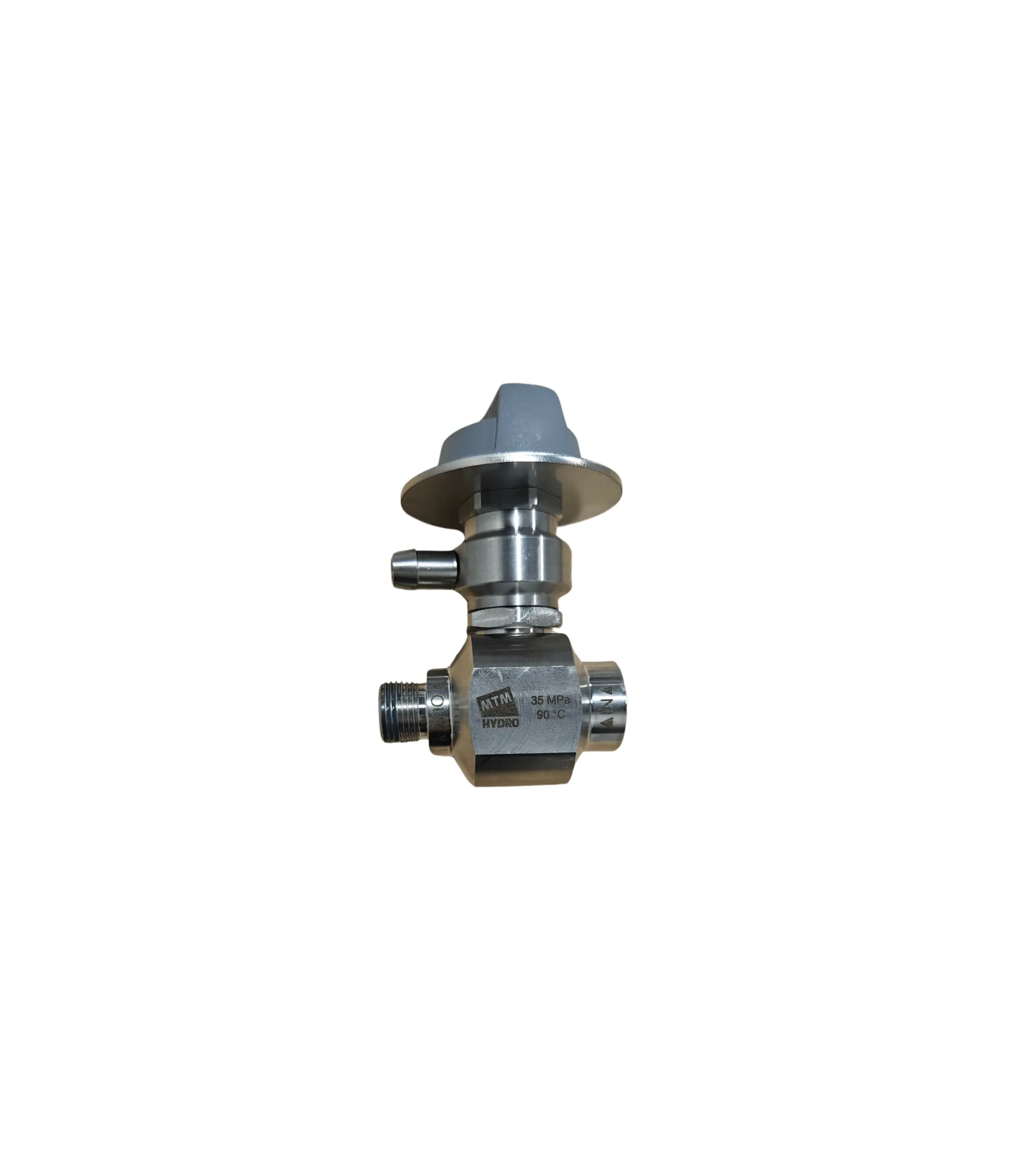

The AIS35 Adjustable Foaming Injector is a high quality, stainless steel, Italian manufactured injector, that is suitable for the toughest environments.  This needs to be used in conjuction with the correct sized orifice, FHS35 nozzle and FHS35 Foam Head.  It also requires two quick connect fittings and a draw tube.

• Stainless Steel
• 4500PSI
• 194F

Sizing - AIS35 INJECTOR

Select orifice kit number based on current nozzle size.
Nozzle A and Venturi B are both included in the Orifice Kit.

Foam Head (FH) Nozzle sizes can be selected from the chart below

Nozzle Size					Orifice Kit #									Recommended FH Range
2.5					16.4000									4.0/4.5/5.0
3.0					16.4001									4.0/5.5/6.0
3.5					16.4002									5.5/6.0/6.5
4.0					16.4015									6.5/7.0
4.5					16.4016									7.0/7.5/8.0
5.5					16.4017									7.5/8.0
6.0					16.4018									10.0/11.0/12.0/15.0
7.0					16.4019									10.0/11.0/12.0/15.0
8.0					16.4020									15.0/20.0



                                    Move up one size if exact nozzle size is not shown in the above chart.
